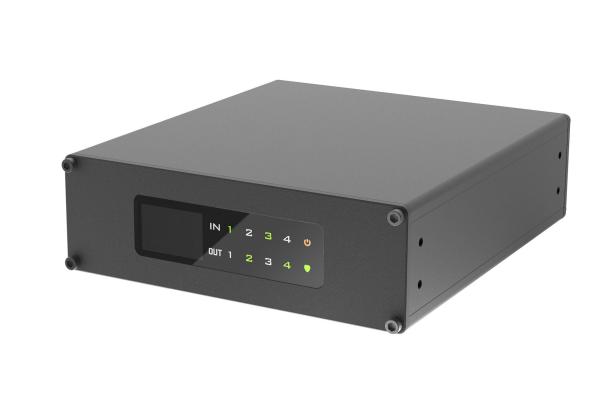

PoE and DC12V dual power supply 4CH Dante DSP network audio Processing
Main Features:
- This processor can realize interface audio signal processing.
- This processor supports 4-way analog audio signal balance input and output, 4-way Dante digital audio signal input of 2 Dante devices, and the 4-way Dante digital audio signal output.
- DSP processing functions include gain adjustment, 5 - stage parameter equalization, compressor, mixer, 15 - stage graphic equalization, limiter, setting, etc.
- It can support network connection PC control software and mobile control software.
- PoE mode power supply, can be used with 802.3af standard PoE switch.
- Provide Windows platform /PAD client software
Specification:
| Model No. | DB0404-C | | Dante Interface | 2 | | Simulated maximum gain | -6～36dB,6dB each,tota 7 level | | Digitalizing bit | 24bit | | Sampling Rate | 48k | | Frequency Response (20~20KHz) | ±0.2dB | | Phantom power (per input) | 48V | | Maximum level (input/output) | +10dBu /+14dBu,balance | | Total harmonic distortion + noise | ≦0.005% @4dBu | | Noise floor (A- weight) | -88dBu | | Input impedance (balance-type) | 20KΩ | | Output impedance (balance-type) | 100Ω | | System delay | 1ms | | Channel isolation @1kHz | 100dB | | Working Power Supply | DC 12V & PoE | | Working Temperature | -10-50℃ | | Size | 142X157*46mm | |
Software:
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.
Products Over View:
① 12V Dc power interface.
② OLED Display screen, used to display IP address and other information.
③ Two-way Dante network interface, support PoE power supply, support network cascade.
④ Signal indicator, indicating the status of 1-4 input signals.
⑤ Four way balance signal input interface, if linear input, please connect "+" and "G".
⑥ Signal indicator, indicating the status of 1-4 input signals.
⑦ Four way balance signal output interface
⑧ Two way AM100 interface, support far field pickup
⑨ The flashing light indicates that the system is in normal operation
⑩ When the indicator lights up, the system power is switched on.
Advantages:
1.Company: Innovative
FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.
2.Wide & Deep Products Line
We provide over 200 audio & Video products, as well as a series of Dante products, such as Digital Signal processor, Digital microphone system,Dante signal processor, 2CH Dante AVUO,2CH Dante wall plate,4CH Dante box., Dante Bluetooth panel, Dante microphone, and Dante speaker etc…
Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.
3.Professional & Fast Service,
24 hours online services to provide suggestions and solutions for customer.
After-Sales Technical Support /Product Maintenance
Wiring/Installation/Debugging Instruction
4.OEM/ODM Solutions
Professional System Designers to assist in product selection and system design to meet your specific needs.
Check Products one by one, to make sure all products are working excellent quality..
